Geo-Lock™ Channel Anchors For Extreme Wall Problems

Boring Holes For Earth Anchors

Before your foundation channel anchors are scheduled to be installed, one of our in-house foundation experts will inspect your problem and map out where each anchor will be placed. When the contractors arrive, their written proposal will show each anchor location.

At each earth anchor location, a section of sod is carefully removed and placed aside to be returned later. Then a plastic sheet is laid down, and the hole is made with a power auger.

Preparing The Foundation Wall

After earth anchor holes have been made, your foundation contractor will drill small holes through your foundation wall that correspond to earth anchor locations. Then steel anchor rods will be driven through the holes, extending all the way to the earth anchor holes.

The holes in the foundation are each just 1" in diameter. This is much smaller than the large holes and/or sections of concrete block that must be removed for other wall repair techniques.

Joining Rods To Earth Anchors

The threaded end of each steel rod extends through a hole in the center of its earth anchor. Then a nut is screwed to the rod to keep the two parts permanently attached. The anchor-and-rod assemblies are buried in their holes, and earth is carefully replaced and compacted to lock anchors in place.

Each of our Geo-Lock™ Channel Anchors includes a 25-year manufacturer's warrant, as well as our own in-house quality and performance warranty.

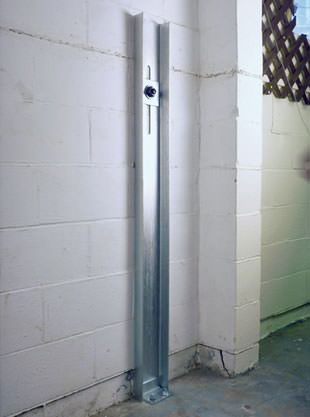

Mounting The Channel Anchor

After fastening the earth anchor outside, your contractor will mount the steel channel anchor to the inside surface of your foundation wall, fitting each channel anchor over a steel rod.

Unlike uncoated systems that can corrode and rust over time, each Geo-Lock™ Channel has a rust-resistant zinc coating. This keeps them looking neat and clean in your basement for decades to come.

Securing The Channel Anchors To The Floor

Each channel anchor extends down vertically to the concrete slab floor,

The contractor will now fix each channel anchor's position on the floor by bolting a strong steel bracket to the floor with a pair of heavy-duty bolts.

Tightening the nut on the steel rod that extends through each channel anchor stabilizes the foundation, preventing further bowing or tilting.

Restoring The Landscaping

At Ayers Basement Systems, we take great care in leaving each job clean, neat, and free of any damage to your existing landscaping.

During our cleanup process, all dirt excavated during Step 1 will be returned to the hole. Workers will thoroughly tamp down the fill in each hole to avoid future soil settlement issues.

Finally, the sod will be carefully replaced at each hole location, then raked and tamped to blend seamlessly with surrounding grass.

Tightening Wall Anchors

One thing that makes the Geo-Lock™ system so powerful is the fact that it not only stops your walls from moving inwards -- it also provides the opportunity to straighten your foundation walls over time.

As your walls are returned to their original position, your home's value and appearance will improve -- making your home much more appealing for both you and for prospective home buyers.
